Amana Tool Box Joint Router Bit Sets

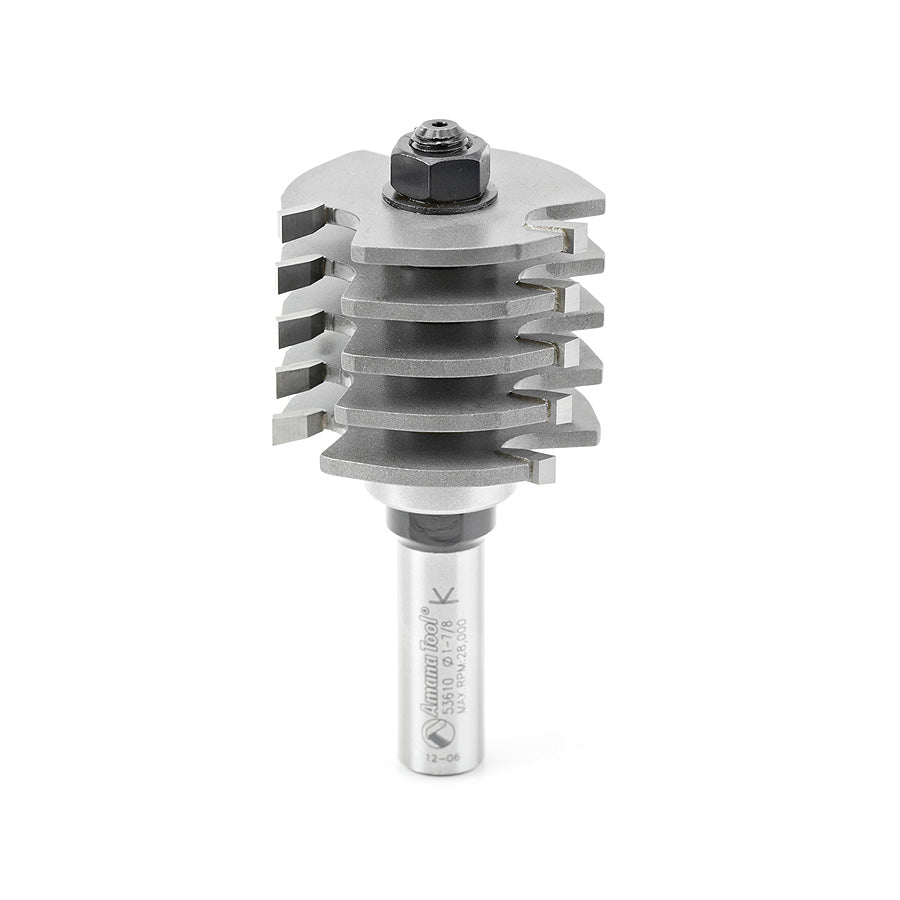

53610 - Box Joint 1-7/8 Dia x 1-3/8 x 1/2 Inch Shank w Upper BB 3-Flute Set
JMP Wood Linden
621 Commerce Road
Linden NJ 07036
United States
Cut strong, attractive box joints for small boxes, shallow drawers and trays with this bit. By taking three passes it can be used with stock up to 1/2" thick and 4" wide. The most accurate way to adjust the height of the bit while ensuring a good fit when taking multiple passes is to align a cutter on the bit with one of the previous cuts. The bit has five uniformly spaced 3-wing slotting cutters and a ball-bearing guide on a 1/2" shank arbor. Use in a table-mounted router for best results.
Maximum RPM 13,000.
