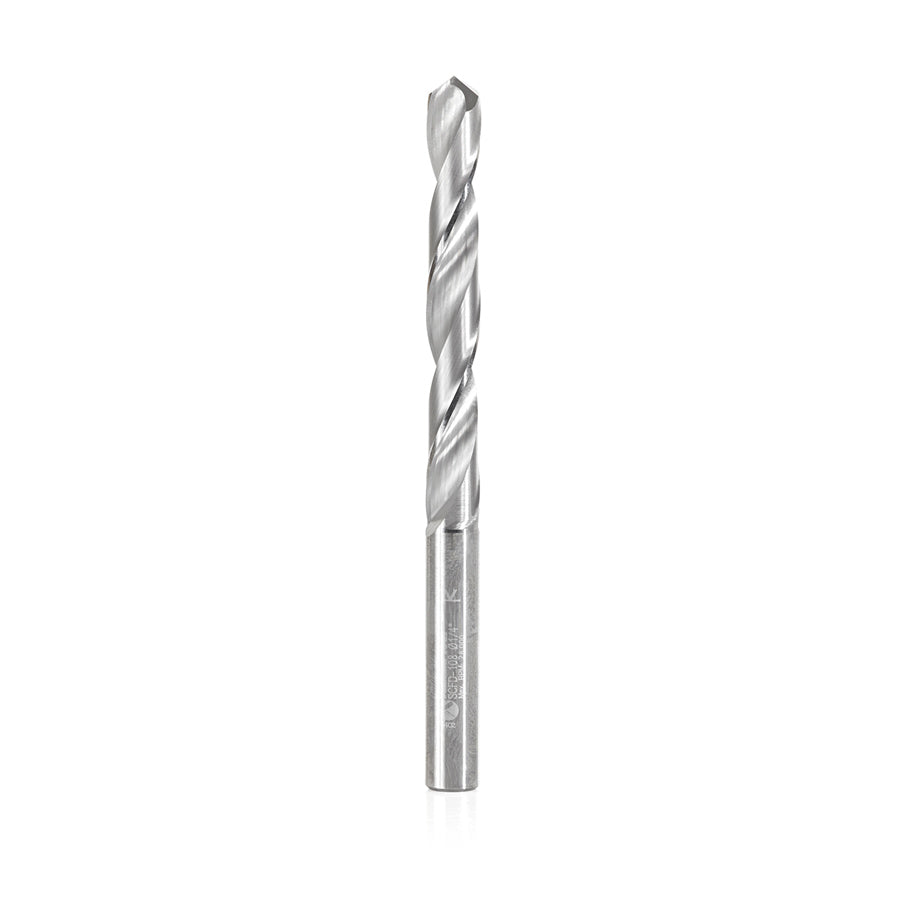

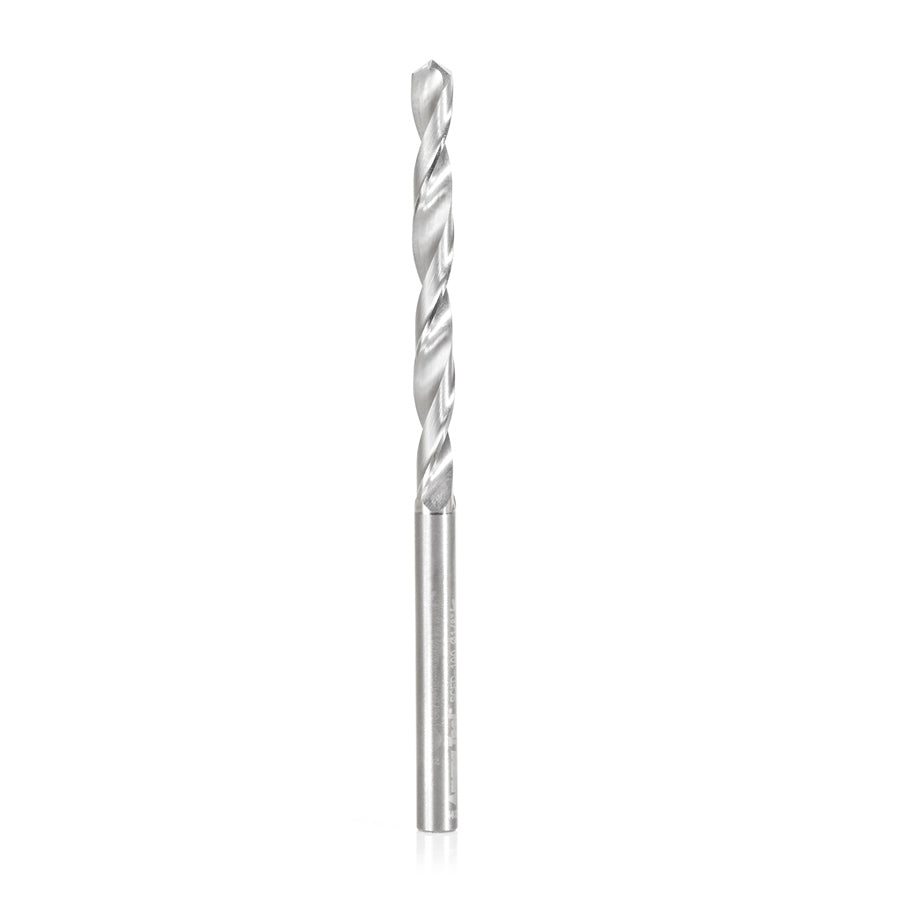

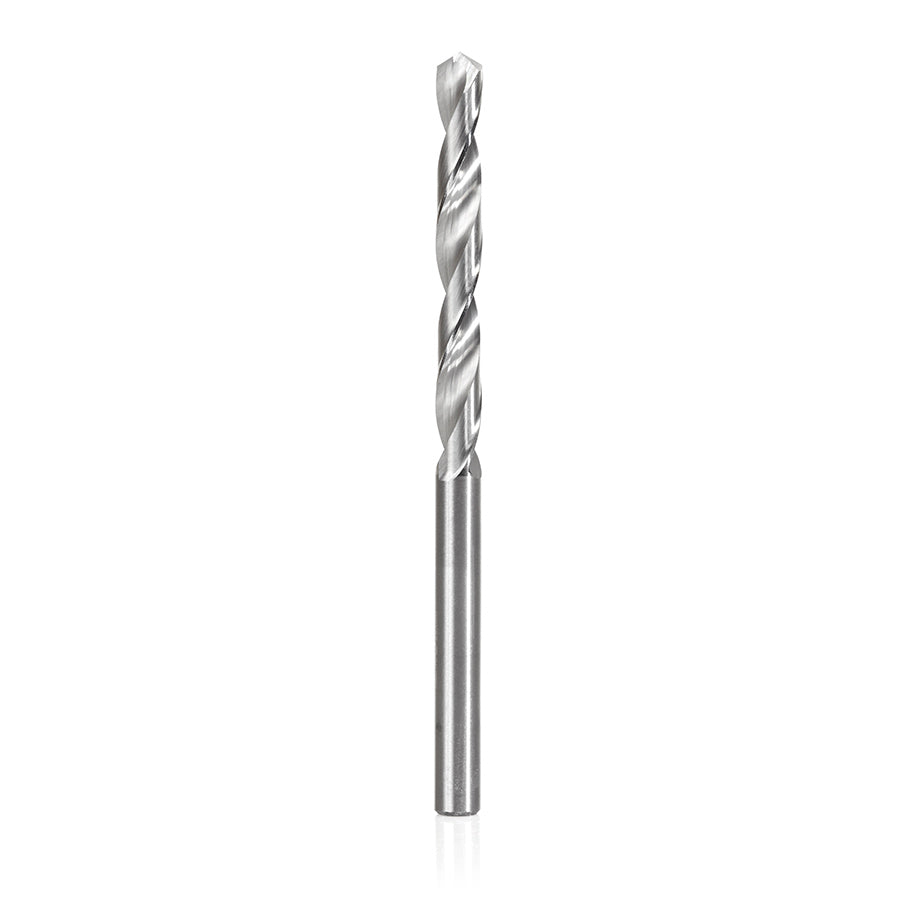

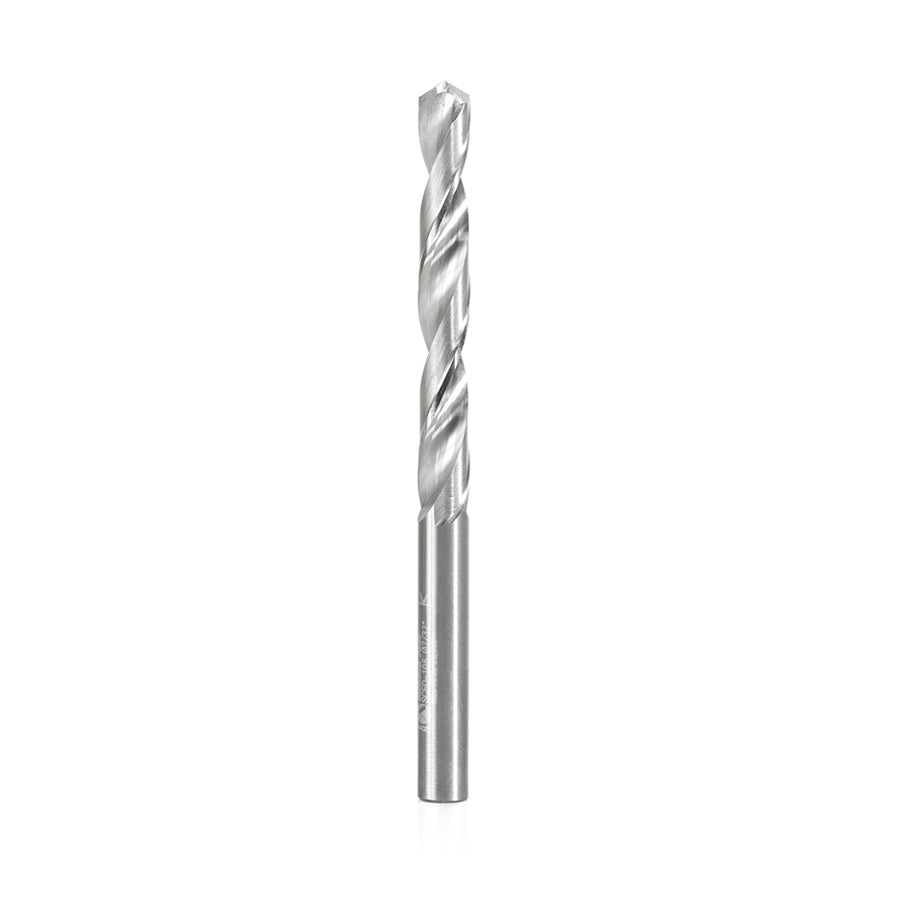

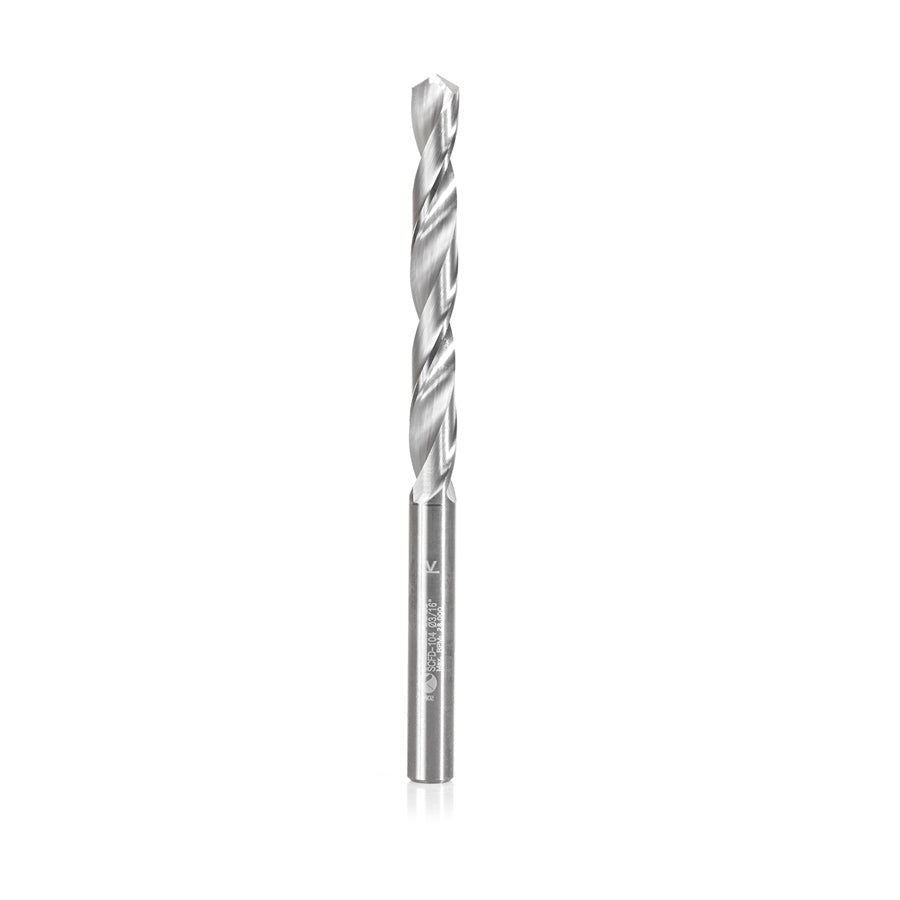

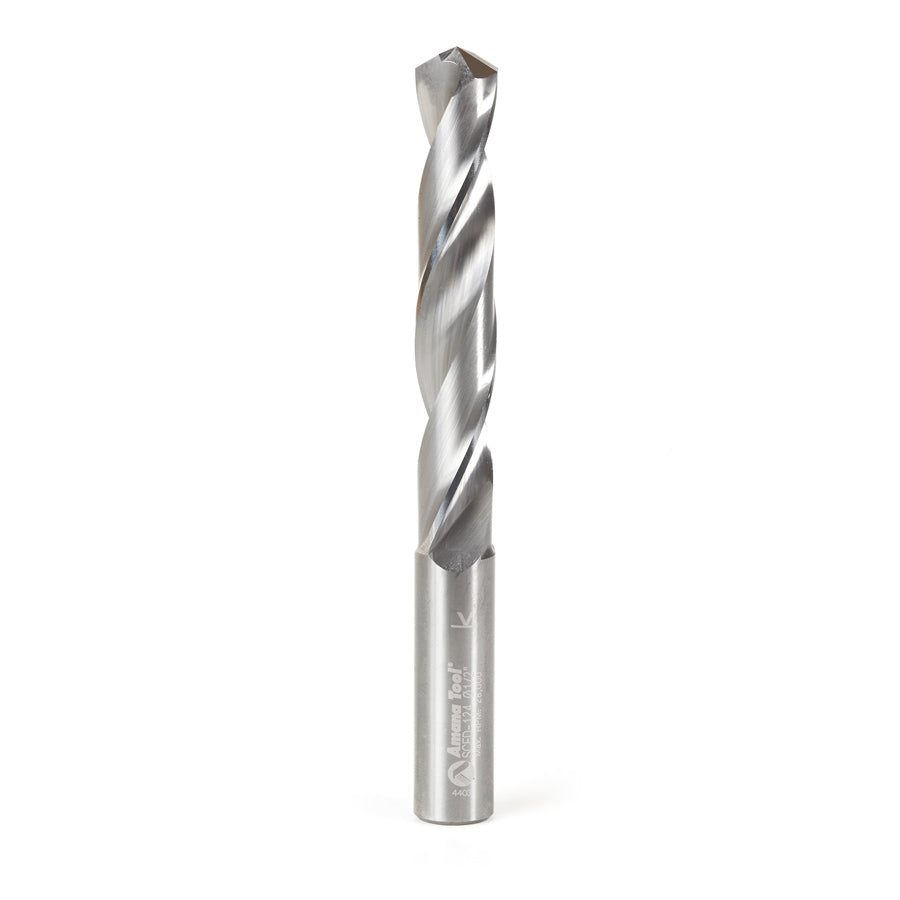

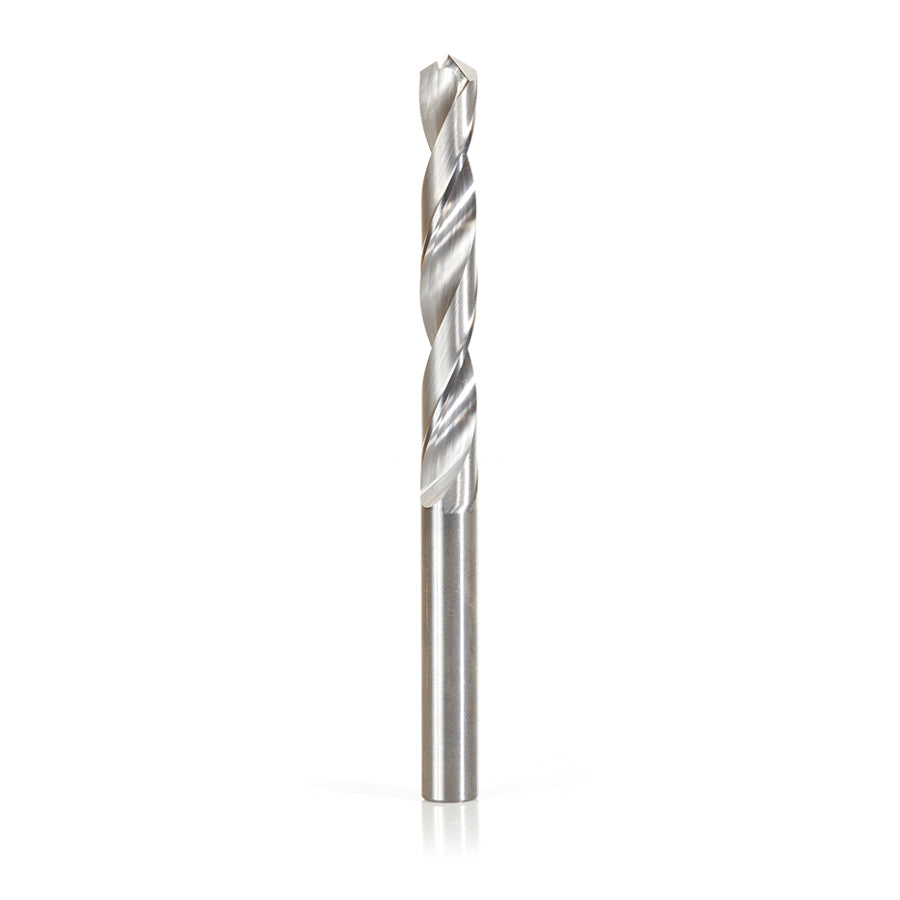

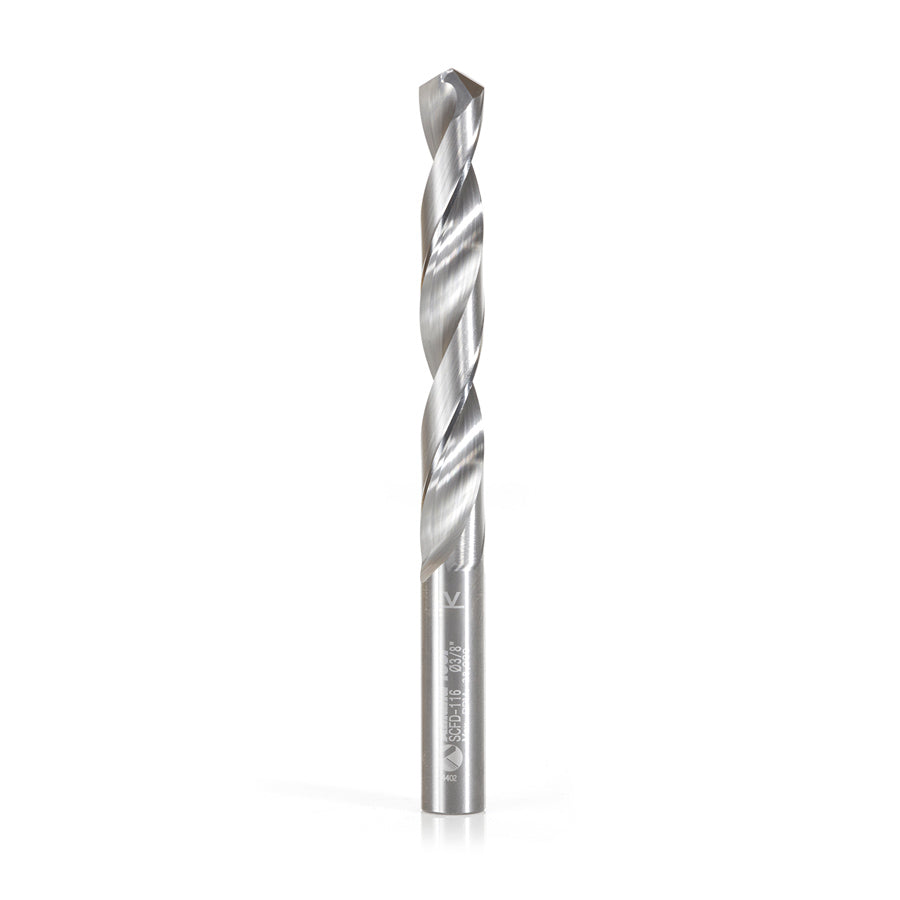

Amana Tool Solid Carbide CNC 4 Facet 118 Deg Drill Point Fractional Drill Bits
Option
Amana Tool Solid Carbide CNC 4 Facet 118 Deg Drill Point Fractional Drill Bits
SCFD-100 - 1/8 Dia x 1-1/4 x 1/8 Shank x 2-1/4 Inch Long
JMP Wood Linden
621 Commerce Road
Linden NJ 07036
United States
Amana Tool's 4 facet jobber length fractional drills consist of 2 cutting edges with 2 facets per cutting edge. The facets consist of the lip relief and the lip clearance angle.
Multi-faceted drill geometries translate into improved centering accuracy, thereby producing rounder, precise holes less likely for “bell mouthing.” Our premium grade carbide substrate insures increased tool life by a minimum factor of 10X’s over HSS coated bits, all while often eliminating the need for a prior center punch or spotting procedure. Also good for drill press.
Excellent for:
- Aluminum
- Aluminum 5052
- Aluminum Alloys
- Aluminum Alloyed Si > 10%
- ACM
- Brass
- Bronze
- Copper
- Copper Alloys
- Fomex® with Aluminum Face
- Steels
- Tool Steels
- Free Machining Stainless Steels
- Soft Cast Irons
- Medium Cast Irons
- Malleable Cast Irons
- Magnesium
- Nickel Alloys
- Low Carbon Steels
- Medium Carbon Steels
- High Tensile (35-45 Rc) Steels
- High Tensile (45+ Rc) Steels
- Soft Titanium
- Titanium Alloys Hard Titanium
More sizes and types (Letter, Number & Metric) available upon request.
Router collet reducer RB-102 (1/4 to 1/8) available for 1/8 shank bits.
