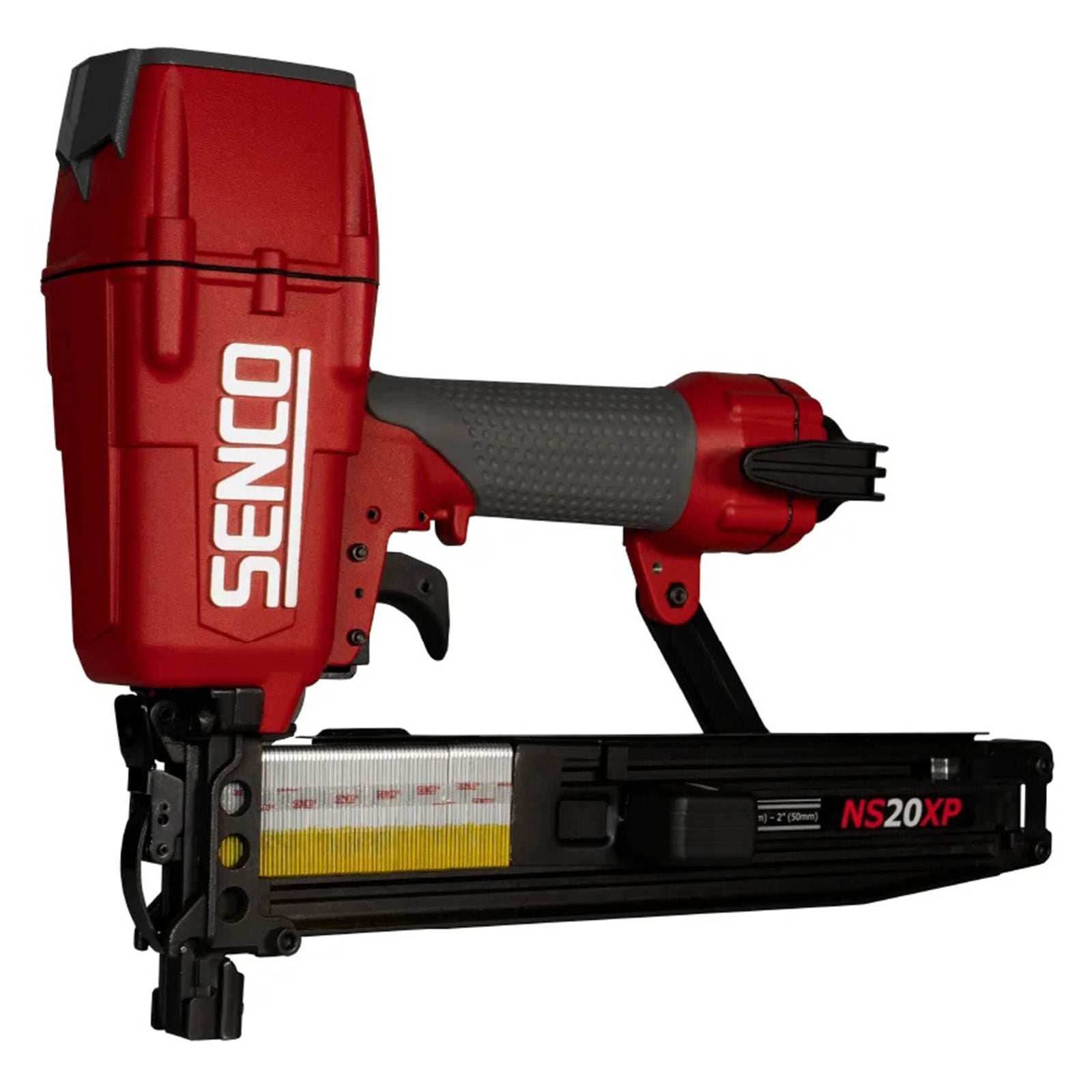

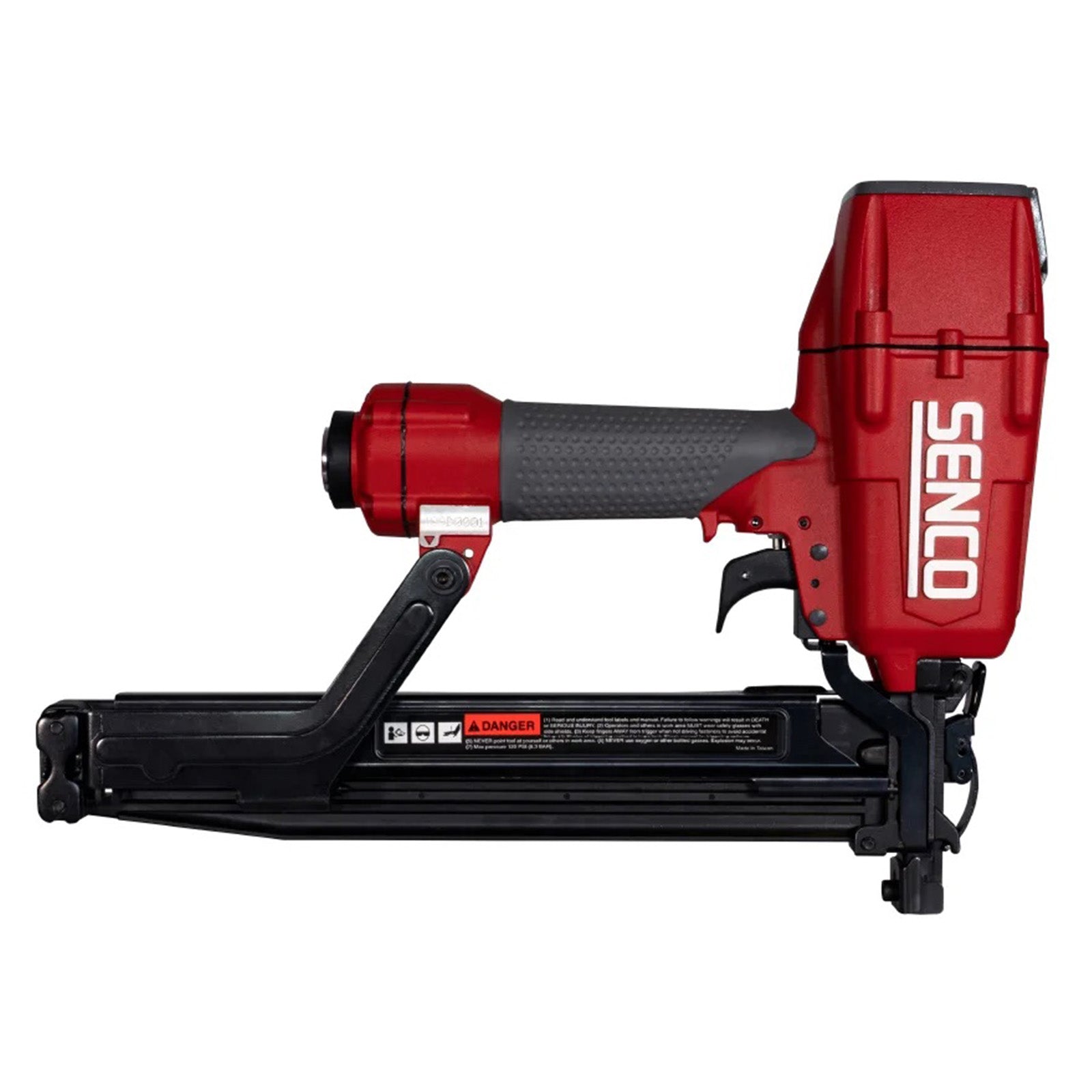

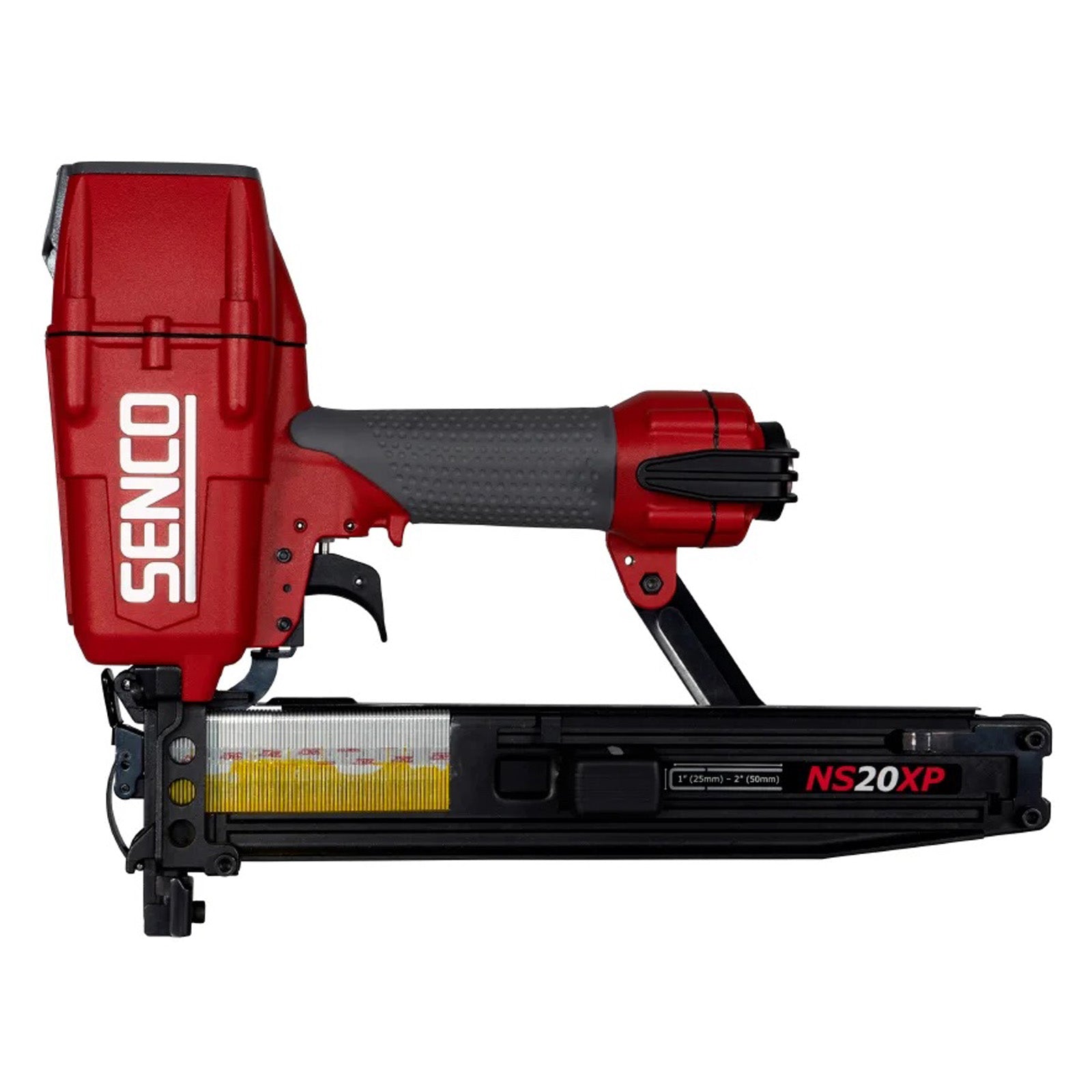

Senco NS20XP 16 Gauge 7/16" Crown, 2" Construction Stapler

SENCO’s NS20XP sets the industry standard for construction staplers with its class-leading power and overall durability. The drive track design and quick clear latch improve overall holding power of the fasteners, enhancing drive performance and virtually eliminating fastener jams and misfeeds. The NS20XP drives both 16 and 17-gauge, 7/16″ crown staples ideal for a wide range of applications, some of which include sheathing, subflooring, roof decking, fascia, soffits, and ridge beam assembly.

Features:

• 15% MORE POWERFUL: Than all other construction staplers in its class
• MULTIDIRECTIONAL STITCHING: Fires 14 staples per second
• QUICK CLEAR LATCH: Remove jams or misfeeds without the use of a tool
• DRIVE TRACK: Eliminates unwanted movement of staple, enhancing overall drive performance
• ADJUSTABLE BELT HOOK: Allows for quick access to the tool when needed
• ALUMINUM HOUSING: Reduces weight and provides superior durability
• ERGONOMIC OVERMOLDED GRIP: Reduces fatigue and increases control of the tool
• STEEL STAPLE DOOR: Provides enhanced durability and improved drive
• WELL-BALANCED DESIGN: Perfect for all day use

Applications:

• Sheathing
• Furniture Framing
• Crate & Box Assembly
• Subflooring
• Pallets
• Roof Decking
• Fascia
• Cedar Shingles

Specifications:

• Item #: 9X0001N
• Tool Weight: 5.1 lbs (2.3 kgs)
• Height: 11" (279 mm)
• Length: 15" (381 mm)
• Width: 3.5" (89 mm)
• Warranty: 5 years
• Technology: PNEUMATIC
• Trigger Type: Contact Actuation
• Capacity: 160
• Power Type: Pneumatic
• Operating Pressure: 70 - 120 (PSI)
• Operating Pressure: 4.8 - 8.3 (Bar)
• Air Consumption: 3.5 (SCFM)
• Air Inlet NPT: 3/8"
• Range: 1" - 2"

Compatible fasteners:

• Senco 16 Ga. 7/16″ Crown Heavy Wire Staples
